The Torque Verification Gold Bottle is used to verify the operational repeatability of your torque analyzer.
The torque verification gold bottle is constructed with high energy permanent magnets and can be pre-set at the factory to a customer specified torque value. Each Gold Bottle is labeled with its exact torque rating, serial number and repeats to an accuracy of +/- 0.2 inch pounds.
Since the cap torque of this bottle is the torque produced by the permanent magnets, the value will always be the same unless something has changed within the torque analyzer itself. The user is thus able to quickly check their analyzer without having to go through the calibration procedure.
The Gold Bottle is fitted with a specifically identified customer closure to match the customer’s chuck.
Required: Please Specify At Which Set Point Between 7 – 16 In/Lbs
Standard
- Torque Range: 3-16 in-lbs
- Repeatability: +/- 0.2 in-lbs
T-12-161 | Epson Printer Option For Torqo II+ Pre-configured
T-12-162 | Torqo Calibration Verification Beam
T-12-163 | Torqo Calibration Weight Kit, 30 in/lbs (Class F Weights)
T-12-165 | Torqo II+ Motorized Cap Torque Tester With Touch Screen Display
T-12-166 | Torqo Gold Bottle Std, Removal 7-16 in/lbs w/Calibration

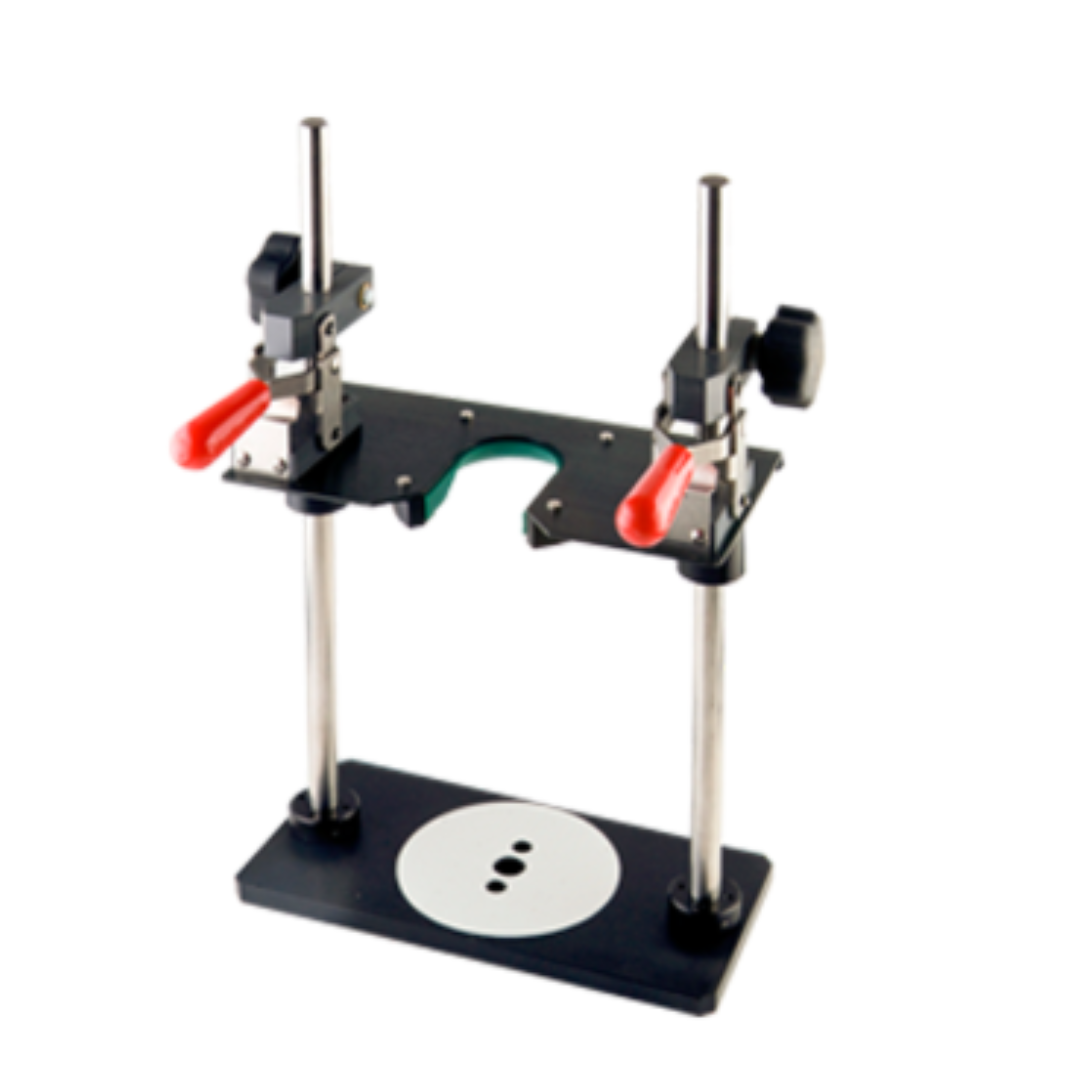

T-12-169 | Vertical Bottle Clamping Fixture
T-12-170 | Torqo Chuck Assembly, 28mm
T-12-171 | Torqo Chuck Assembly, 38mm
PLEASE CALL FOR PRICING ON DISCONTINUED ITEMS:
T-12-164 Torqo II (replaced with T-12-165)
